TIME & COST SAVING

Daisy-Chainable M12 Emergency Stop Button

SAVE WIRING EFFORT & COST

Say goodbye to complex multi-wiring—or costly additional hardware. With our latest QRBLUVOO Emergency Stop Button, you can daisy-chain multiple E-Stops in a single run using standard 8-pin, A-coded M12 connectors.

KEY FACTS

  • 8-PIN M12 CONNECTOR

    A standard 8-pin, A-coded M12 connector is all you need

  • ONLY 1 PLC I/O REQUIRED

    Only one I/O point on your PLC is required.

  • IMMEDIATE LINE SHUTDOWN

    If any E-Stop in the chain is pressed, your line shuts down immediately.

  • EASY SOURCE IDENTIFICATION

    A static or flashing LED ring shows which E-Stop was triggered.

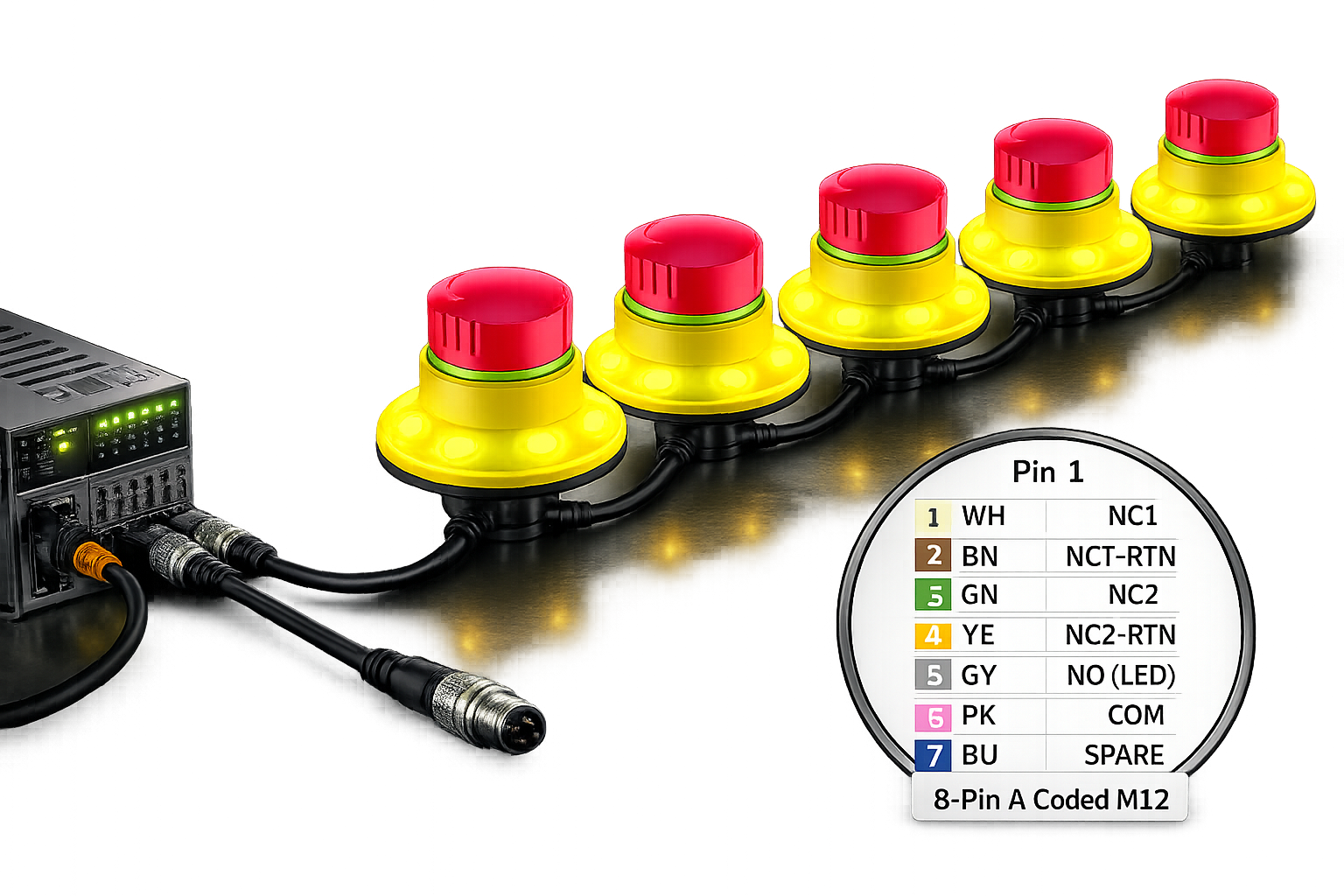

M12 Daisy Chainable E-Stop

Technical Details

Emergency Stop

Illuminated Emergency Stop QRBLUV130031_01

Contact Equipment 1 x NO, 2 x NC
Panel Cutout Ø 22.3 mm
Shape Round
Contact Material AgNi
Contact Details 1 x 8-Pole male M12 Connector (Integrated), A Coded, Aida

1 x 8-Pole female M12 Connector (Integrated), A Coded, Aida
Connector 2 x Flying M12 Connectors with 20cm (~8 inch) wire length
Foolproof Yes
Release Twist
Labeling Option No
Illumination Yes
Protection Class II (protective insulation)
Color Bezel Yellow
Color Actuator Red
Lifecycle 50,000 switching cycles
Certifications UL



Shortage Plug

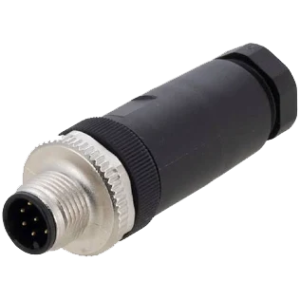

Shortage Plug VK_130031_01

M12 connector, 8-Pole, A-Coded

(one per strain to revert the signal)

Datasheets

Syncing Configuration

Loading product downloads

Gathering the available files for every resolved product in the current configuration.

Be among the first to secure units from our initial SOP batch in August 2026.

Limited availability
Availability is limited to 250 units, so request early access today

Want't to learn more or see it in action?

Just complete below contact form to schedule a meetign or live demo.
