Industrial Pedal Switch KEF with 1M Cycle Durability
Unleash efficiency with the KEF Pedal Switch! Engineered for durability with 1 million cycles, no-fuss screw terminal connections, and robust protective insulation. Safety and precision in every press.
Price
$107.06 excl. Sales Tax
| Weight | 19.2 lbs |
|---|---|

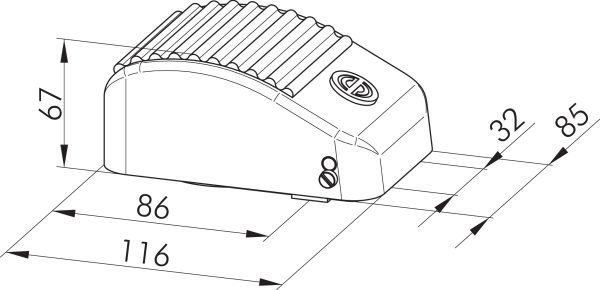

| Dimensions | 4 × 4.75 × 3 in |
| Travel | 6 mm |
| Switching Function | Momentary |
| Contact Material | AgNi |
| Contact Equipment | 1 x NC + 1 x NO |
| Contact Details | |
| Color Actuator | Red |
| Illumination | No |
| Labeling Option | No |
| IP Protection Front | IP00 |
| Protection Class | II (protective insulation) |
| Lifecycle | 1 million switching cycles |
| Certifications | CE, CSA, ROHS, UL |
| Product Group | |
| Product Series | |
| Contact Type | Screw Terminal |

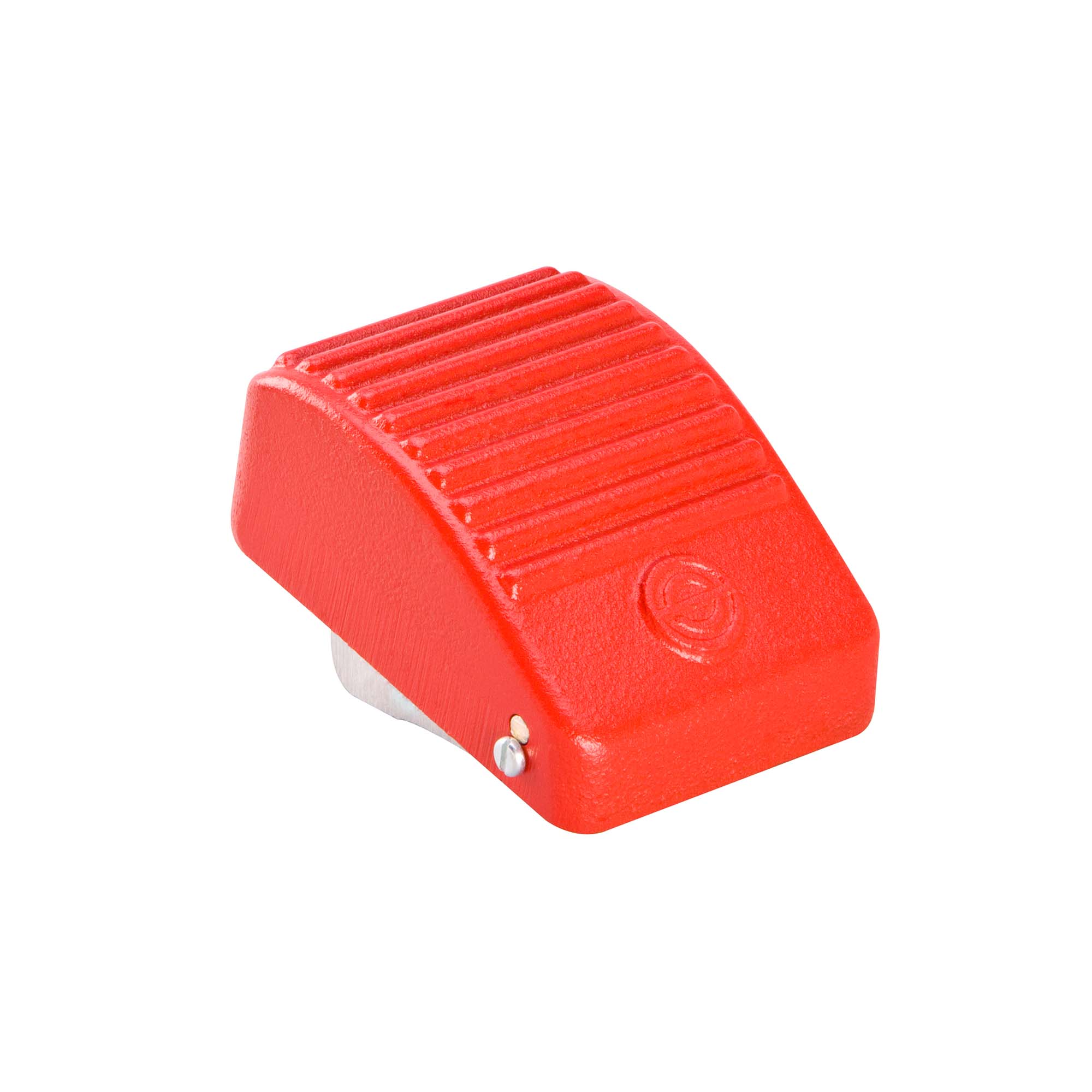

Pedal Switch KEF – Designed for durability and precision, this pedal switch is ideal for rigorous industrial applications. With a robust lifecycle of 1 million switching cycles and a momentary switching function, it guarantees reliable operation without illumination.
Key features include a 6 mm travel, IP00 protection at the front, and Class II protective insulation. Contacts are secure with a screw connection 2×2.5 mm², finger-protected for safety.
Constructed with AgNi contact material, it meets multiple certifications: CE, CSA, ROHS, UL. The actuator is colored in striking red, and the switch includes 1 x NC + 1 x NO contact equipment with screw terminal type.
