Pushbutton (SHORTRON) – Momentary – Faston Terminals 2.8 X 0.8 Mm – SVATLI
Illumination: Yes
Switching Function: Momentary
Lifecycle: 1 million switching cycles
Contact Type: Faston Terminals 2.8 X 0.8 Mm
Contact Material: AgNi
Certifications: CE, ROHS, UL, CSA
IP Protection Front: IP65, IP67
Travel: 2.3 mm
Certification Standards: EN 60947-5-1, EN 61058-1
Bezel Color: Stainless Steel, Polished

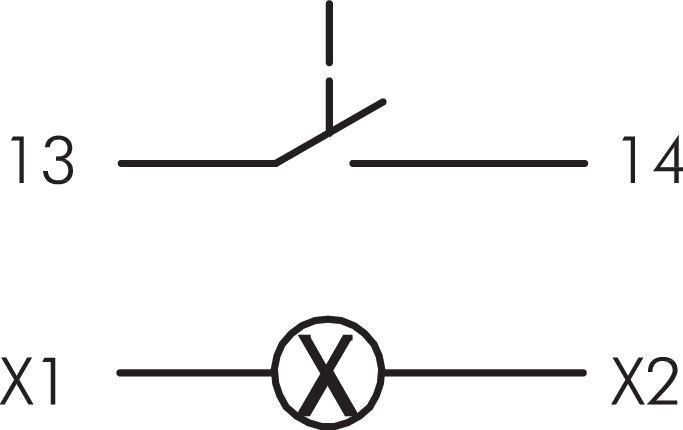

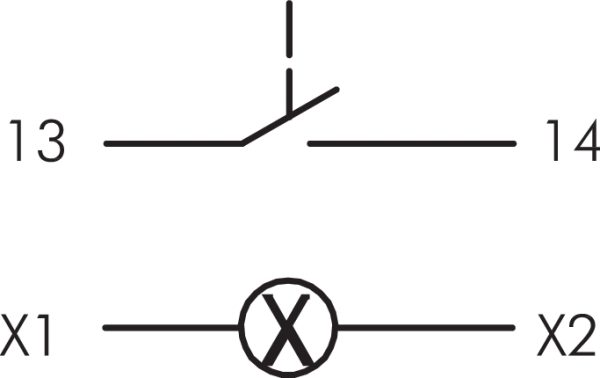

Contact Equipment: 1 x NO

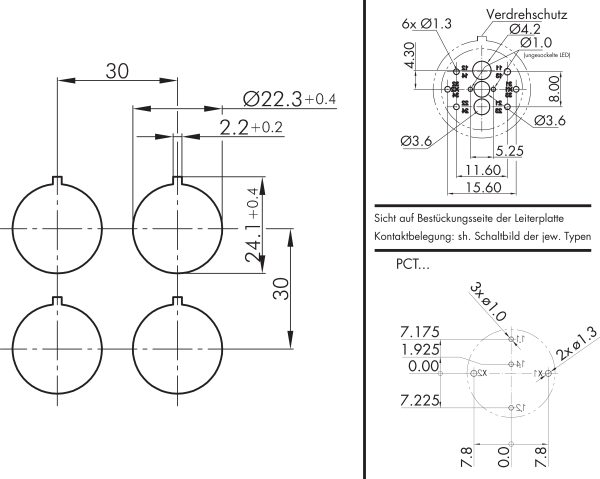

Panel Cutout: Ø 22.3 mm
Lambholder: none, with integrated 3 mm LED white

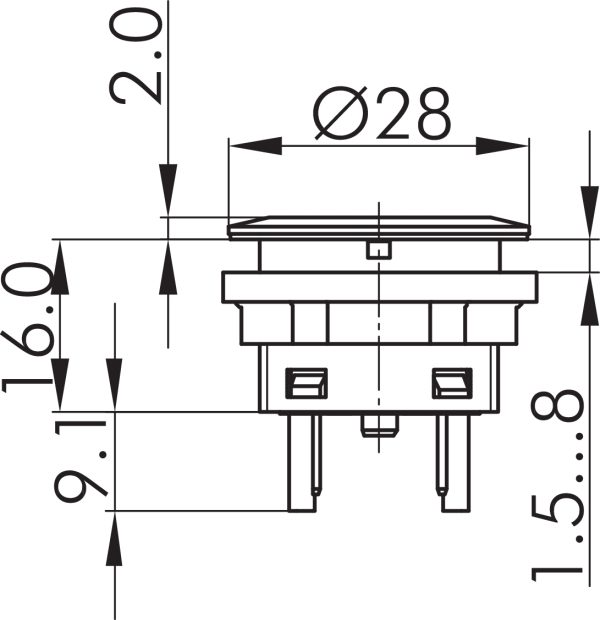

Mounting Depth: 25 mm
Shape: Round
Labeling Option: Yes
Product Series: SHORTRON
Product Group: Pushbuttons
Price
$35.75 excl. Sales Tax
Description
Illumination: Yes
Switching Function: Momentary
Lifecycle: 1 million switching cycles
Contact Type: Faston Terminals 2.8 X 0.8 Mm
Contact Material: AgNi
Certifications: CE, ROHS, UL, CSA
IP Protection Front: IP65, IP67
Travel: 2.3 mm
Certification Standards: EN 60947-5-1, EN 61058-1
Bezel Color: Stainless Steel, Polished
Contact Equipment: 1 x NO
Panel Cutout: Ø 22.3 mm
Lambholder: none, with integrated 3 mm LED white
Mounting Depth: 25 mm
Shape: Round
Labeling Option: Yes
Product Series: SHORTRON
Product Group: Pushbuttons
Additional information
| Switching Function | Momentary |
|---|---|
| Contact Type | |
| Travel | 2.3 mm |
| Contact Equipment | 1 x NO |
| Panel Cutout | |
| Shape | Round |
| Illumination | Yes |
| Bezel Color | Stainless Steel, Polished |
| Labeling Option | Yes |
| Lampholder | none, with integrated 3 mm LED white |
| Lifecycle | 1 million switching cycles |
| IP Protection Front | IP65, IP67 |
| Mounting Depth | 25 mm |
| Contact Material | AgNi |
| Certifications | CE, CSA, ROHS, UL |
| Certification Standards | EN 60947-5-1, EN 61058-1 |
| Product Group | |
| Product Series |
