Switching Function | Maintained |
---|---|

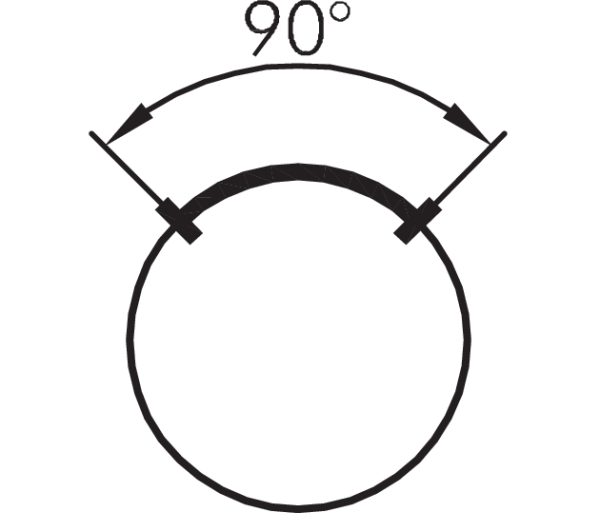

Direction-Angle | 1 x 90° Degrees |
Panel Cutout | |
Shape | Round |
Illumination | No |
Labeling Option | No |
IP Protection Front | IP65 |
Protection Class | II (protective insulation) |
Color Bezel | Silver |
Product Dimension | Ø 28.0 mm (1.1 inch) |
Certifications | CE, ROHS |
Product Group | |
Product Series |

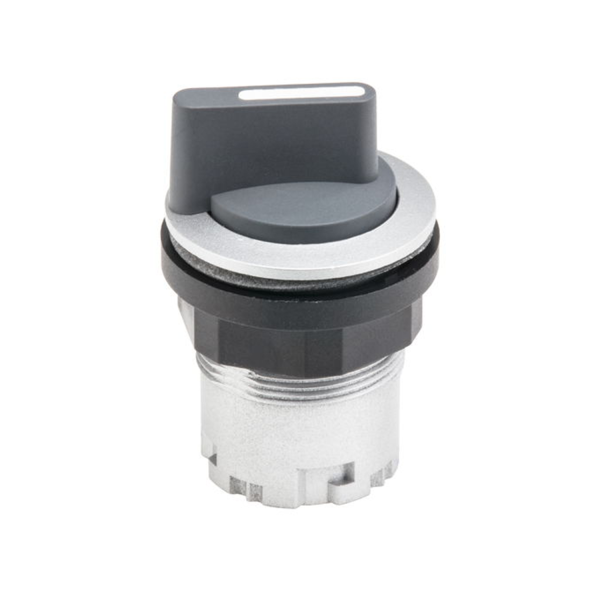

Explore the efficiency of the RONDEX-JUWEL Selector Switch Heads, a top choice for robust applications. This unit features a maintained switching function and lacks illumination, ensuring streamlined operation. Certified with CE and ROHS and boasting an IP65 rating, it promises durability and protection against dust and water.
Dimensions: Ø 28.0 mm with a panel cutout of Ø 22.3 mm. Color: Sleek silver bezel. Shape: Round, with a 90° directional angle. It adheres to Protection Class II, ensuring safety with protective insulation.
