Selector Switch Head – Momentary – 1 x 40° Degrees – Round – Ø 22.3 mm – RRJVASTAL_KL

Category: Selector Switch Heads | Series: RONTRON-R-JUWEL

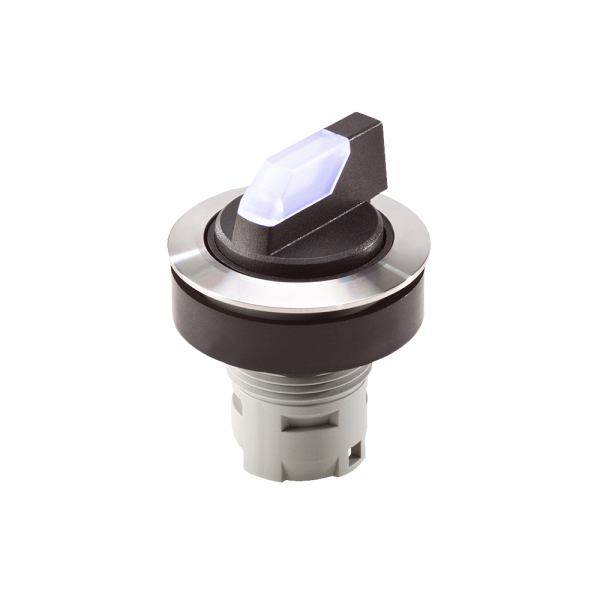

RRJVASTAL_KL Product Image
RRJVASTAL_KL Dimensional Drawing
RRJVASTAL_KL Drilling Pattern

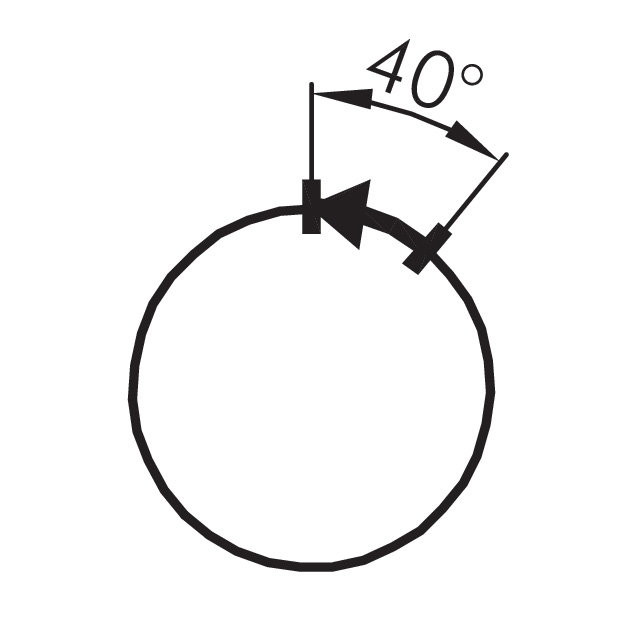

RRJVASTAL_KL Switching Positions

Selector Switch Head – Momentary – 1 x 40° Degrees – Round – Ø 22.3 mm – RRJVASTAL_KL

Illumination: Yes
Switching Function: Momentary
Base Material: Metal
Certifications: CE, ROHS, UL, CSA
IP Protection Front: IP65
Product Dimension: Ø 28.0 mm (1.1 inch)
Product Series: RONTRON-R-JUWEL
Protection Class: II (protective insulation)
Bezel Color: Stainless Steel, Polished
Panel Cutout: Ø 22.3 mm
IP Protection Back:
Item ID: RRJVASTAL_KL
Shape: Round
Color LED: White
Direction-Angle: 1 x 40° Degrees
Labeling Option: No
Product Group: Selector Heads

Product Documents

Price

$31.02 excl. Sales Tax

18 in stock (can be backordered)

$31.02

Description

Illumination: Yes
Switching Function: Momentary
Base Material: Metal
Certifications: CE, ROHS, UL, CSA
IP Protection Front: IP65
Product Dimension: Ø 28.0 mm (1.1 inch)
Product Series: RONTRON-R-JUWEL
Protection Class: II (protective insulation)
Bezel Color: Stainless Steel, Polished
Panel Cutout: Ø 22.3 mm
IP Protection Back:
Item ID: RRJVASTAL_KL
Shape: Round
Color LED: White
Direction-Angle: 1 x 40° Degrees
Labeling Option: No
Product Group: Selector Heads

Additional information

Switching Function

Momentary
Direction-Angle

1 x 40° Degrees
Panel Cutout

Shape

Round
Illumination

Yes
Labeling Option

No
Protection Class

II (protective insulation)
Bezel Color

Stainless Steel, Polished
Color LED

White
IP Protection Front

IP65
Certifications

CE, CSA, ROHS, UL
Base Material

Product Dimension

Ø 28.0 mm (1.1 inch)
Product Group

Product Series

Item ID

RRJVASTAL_KL
