Selector Switch – Momentary / Maintained – 1 x 60° Degrees / 1 x 40° Degrees – Ø 22.3 mm – SSWWCII_C009
Discover SHORTRON connect Selector Switches: Engineered for durability with 30,000 cycles and robust IP65 protection. Perfect for precise control with a sleek black bezel.
Price
$51.25 excl. Sales Tax
| Switching Function | Momentary / Maintained |
|---|---|
| Direction-Angle | 1 x 60° Degrees / 1 x 40° Degrees |
| Panel Cutout | |
| Illumination | No |
| Labeling Option | No |
| Contact Equipment | 2 x NO |
| Mounting Depth | 33.7 mm |
| Contact Details | |
| IP Protection Front | IP65 |
| IP Protection Back | IP65, IP67 (on the rear with plugged-in M12 connector) |
| Protection Class | II (protective insulation) |
| Color Bezel | Black |
| Certifications | CE, CSA, ROHS, UL |
| Certification Standards | EN 60947-5-1, EN 61058-1 |
| Lifecycle | 30,000 switching cycles |
| Contact Material | AgNi |
| Product Group | |
| Product Series | |
| Contact Type | M12 |
Explore the SHORTRON connect Selector Switches, designed for robustness and precision. This high-quality switch features a 4-Pole M12 Connector, A-coded with AgNi contact material, ensuring reliable connectivity and a long lifecycle of 30,000 switching cycles.
It offers momentary and maintained switching functions without illumination, suitable for diverse applications. Certified with CE, CSA, ROHS, and UL, and adhering to EN 60947-5-1 and EN 61058-1 standards, it guarantees safety and compliance.

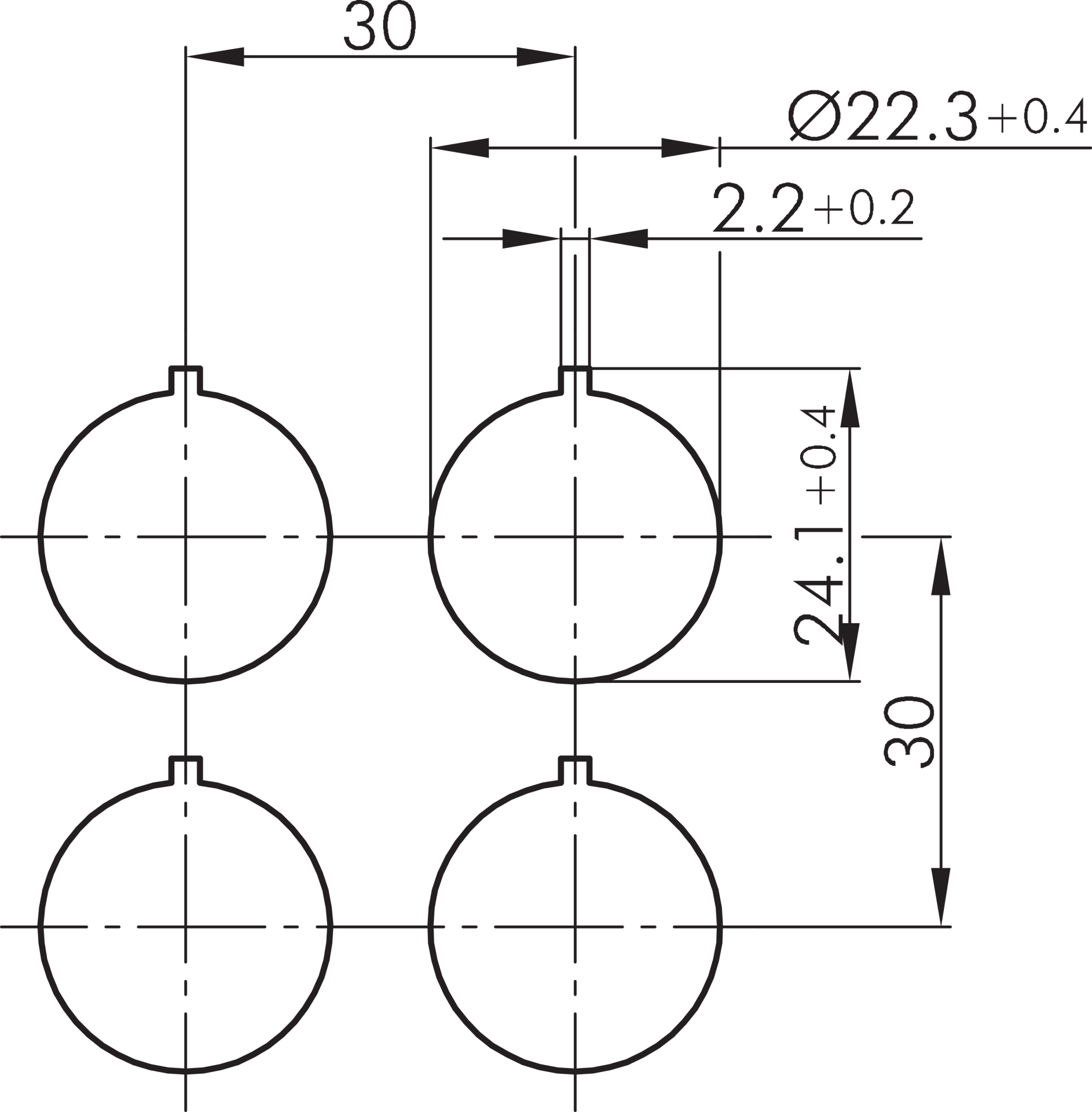

The device boasts a protective IP65 rating on both front and back, enhancing its durability in various environments. The sleek black bezel fits a panel cutout of Ø 22.3 mm, with a mounting depth of 33.7 mm.
With Protection Class II (protective insulation) and versatile contact equipment of 2 x NO, this switch ensures efficient operation and easy integration into your systems.
