Selector Switch – 1 x 90° Degrees – Maintained – Round – Ø 22.3 mm – SVAWAI_C007

Category: Selector Switches | Series: SHORTRON connect

Selector Switch – 1 x 90° Degrees – Maintained – Round – Ø 22.3 mm – SVAWAI_C007

Illumination: No
Switching Function: Maintained
Lifecycle: 30,000 switching cycles
Contact Type: 4-Pole M12 Connector (Integrated), A Coded
Contact Material: AgNi
Certifications: CE, CSA, ROHS, UL
IP Protection Front: IP65
Product Dimension: Ø 28.0 mm (1.1 inch)
Product Series: SHORTRON connect
Certification Standards: EN 60947-5-1, EN 61058-1
Bezel Color: Stainless Steel, Polished
Contact Equipment: 1 x NO
Panel Cutout: Ø 22.3 mm
IP Protection Back: IP65, IP67 (on the rear with plugged-in M12 connector)
Shape: Round

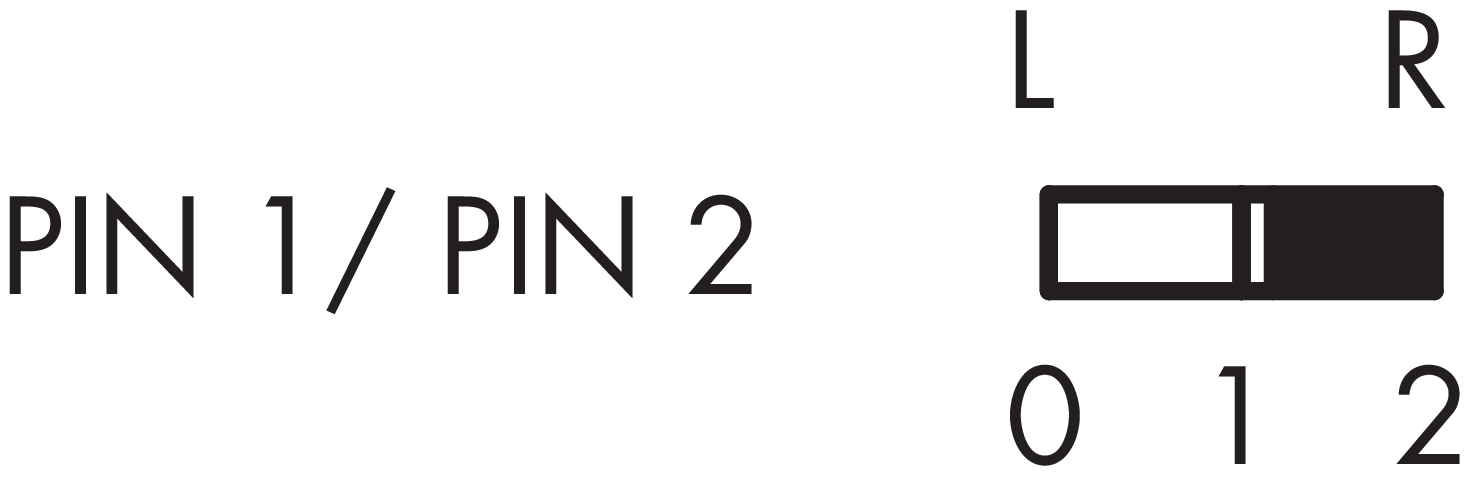

Direction-Angle: 1 x 90° Degrees
Labeling Option: No
Product Group: Selector Switches

Product Documents

Price

$58.09 excl. Sales Tax

47 in stock (can be backordered)

$58.09

Description

Illumination: No
Switching Function: Maintained
Lifecycle: 30,000 switching cycles
Contact Type: 4-Pole M12 Connector (Integrated), A Coded
Contact Material: AgNi
Certifications: CE, CSA, ROHS, UL
IP Protection Front: IP65
Product Dimension: Ø 28.0 mm (1.1 inch)
Product Series: SHORTRON connect
Certification Standards: EN 60947-5-1, EN 61058-1
Bezel Color: Stainless Steel, Polished
Contact Equipment: 1 x NO
Panel Cutout: Ø 22.3 mm
IP Protection Back: IP65, IP67 (on the rear with plugged-in M12 connector)
Shape: Round
Direction-Angle: 1 x 90° Degrees
Labeling Option: No
Product Group: Selector Switches

Additional information

Direction-Angle

1 x 90° Degrees

Switching Function

Maintained

Shape

Round

Panel Cutout

Illumination

No

Labeling Option

No

Contact Equipment

1 x NO

Contact Details

Product Dimension

Ø 28.0 mm (1.1 inch)

IP Protection Back

IP65, IP67 (on the rear with plugged-in M12 connector)

IP Protection Front

IP65

Color Bezel

Silver

Certifications

CE, CSA, ROHS, UL

Certification Standards

EN 60947-5-1, EN 61058-1

Lifecycle

30,000 switching cycles

Contact Material

AgNi

Product Group

Product Series

Contact Type

M12

Material

Metal
