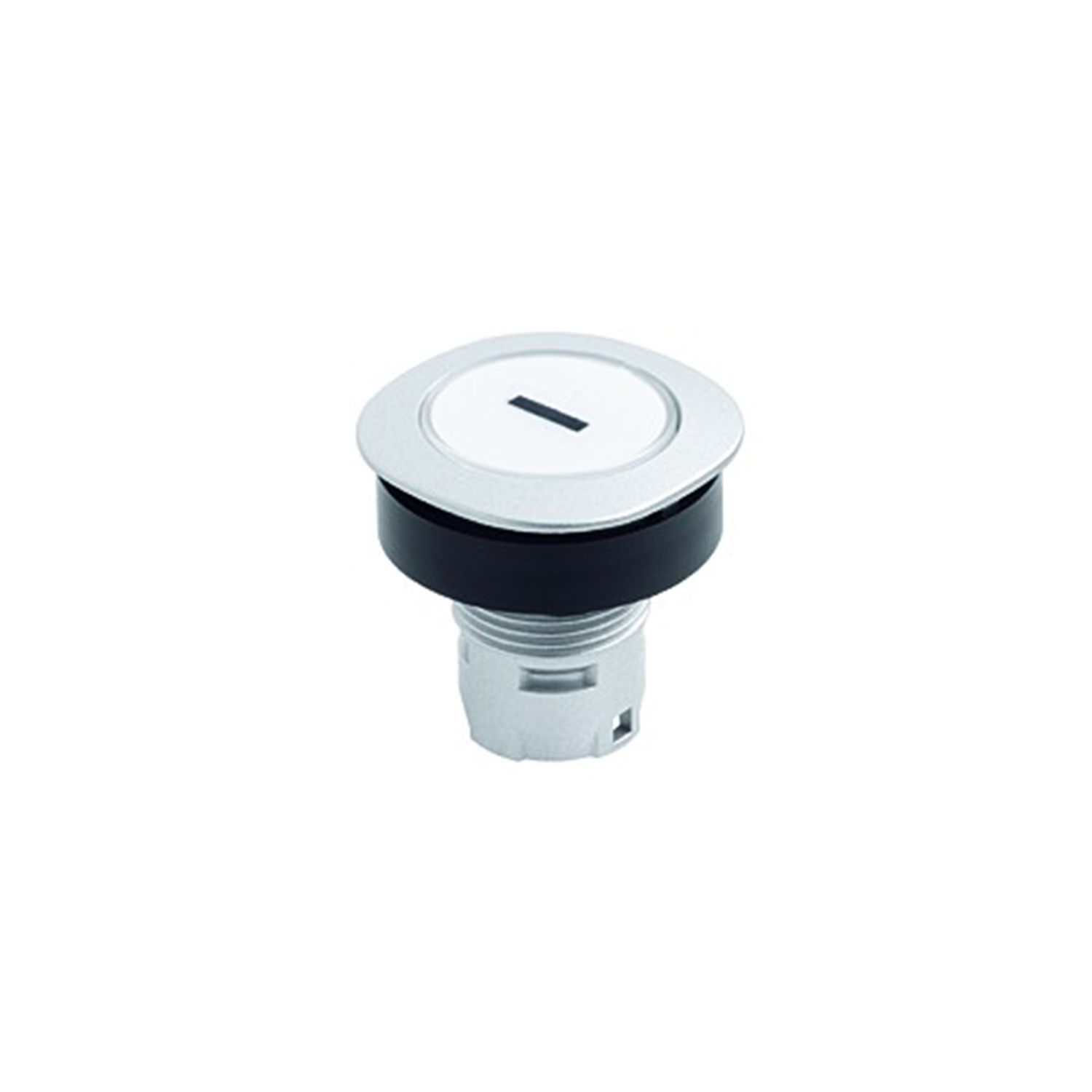

Pushbutton Head (RONTRON-Q-JUWEL) – Ø 22.3 mm – Rounded Square – RQJT

Discover the RONTRON-Q-JUWEL Pushbutton Heads: Elegantly designed with a silver bezel, these illuminated buttons offer robust IP65 protection and a variety of certifications (CE, CSA, ROHS, UL). Perfect for precise operations with a 3mm travel and customizable labeling options. Safety and style in one!

Pushbutton Head (RONTRON-Q-JUWEL) – Ø 22.3 mm – Rounded Square – RQJT

Explore the efficiency and style of the RONTRON-Q-JUWEL Pushbutton Heads, designed for superior functionality and aesthetic appeal.

Featuring illumination for enhanced visibility, these pushbutton heads are certified with CE, CSA, ROHS, UL, ensuring top safety and quality standards.

They boast a robust IP65 protection on the front, making them resistant to dust and water. A travel of 3 mm ensures precise operation.

The sleek silver bezel and rounded square shape enhance panel aesthetics, while the Ø 22.3 mm panel cutout allows for easy installation.

With a Protection Class II, these pushbutton heads offer reliable protective insulation. Customization is possible thanks to the labeling option.

Product Documents

Price

$10.04 excl. Sales Tax

20 in stock (can be backordered)

$10.04

Description

Explore the efficiency and style of the RONTRON-Q-JUWEL Pushbutton Heads, designed for superior functionality and aesthetic appeal.

Featuring illumination for enhanced visibility, these pushbutton heads are certified with CE, CSA, ROHS, UL, ensuring top safety and quality standards.

They boast a robust IP65 protection on the front, making them resistant to dust and water. A travel of 3 mm ensures precise operation.

The sleek silver bezel and rounded square shape enhance panel aesthetics, while the Ø 22.3 mm panel cutout allows for easy installation.

With a Protection Class II, these pushbutton heads offer reliable protective insulation. Customization is possible thanks to the labeling option.

Additional information

Weight 1.6 lbs
Dimensions 2.7 × 1.1 × 3.2 in
Panel Cutout

Shape

Rounded Square

Color Bezel

Silver

Illumination

Yes

Labeling Option

Yes

Travel

3 mm

IP Protection Front

IP65

Protection Class

II (protective insulation)

Certifications

CE, CSA, ROHS, UL

Product Series

Product Group
